Festo
133039

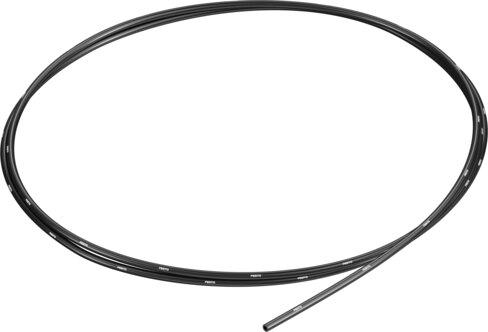

Plastic tubing PUN-H-2X0,4-SW
The Festo 133039 is a black industrial component featuring a 2 mm outside diameter, a 1.2 mm inside diameter, and an ether-based TPE-U pneumatic tubing material with a D 52 +/-3 Shore hardness. Constructed for energy chains, this RoHS-compliant part supports an operating pressure range of -0.95 bar to 6 bar across its entire temperature range of -35 °C to 60 °C, utilizing compressed air as per ISO 8573-1:2010 [7:-:-]. It has a product weight of 0.0024 kg/m, an 8 mm bending radius relevant for flow rate, and a 5 mm minimum bending radius for a 2 mm outside diameter plug connection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133039
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133039.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 2 mm
- Bending radius relevant for ow rate
- 8 mm
- Inside diameter
- 1.2 mm
- Min. bending radius
- 5 mm
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0024 kg/m
- Pneumatic connection
- For plug connection outside diameter 2 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133039. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
