133040

Name: Festo 133040 Plastic tubing PUN-H-2X0,4-RT
Brand: Festo

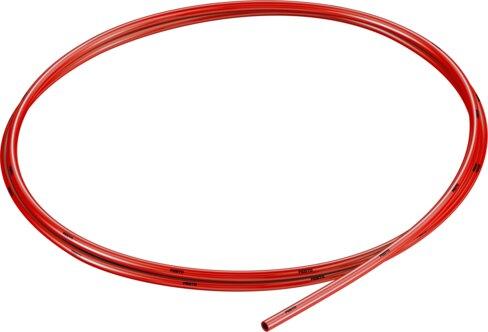

Plastic tubing PUN-H-2X0,4-RT

This Festo industrial component (Part Number 133040) is a red TPE-U ether-based pneumatic tubing featuring a 2 mm outside diameter, a 1.2 mm inside diameter, and a D 52 +/-3 Shore hardness. Constructed for energy chains, it operates within a temperature range of -35 °C to 60 °C and handles operating pressures from -0.095 MPa to 0.6 MPa across all temperatures, extending up to 1 MPa depending on temperature. The tubing accommodates compressed air in accordance with ISO 8573-1:2010 [7:-:-], complies with RoHS material notes, and exhibits VDMA24364-B2-L LABS conformity with a product weight of 0.0024 kg/m. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 133040
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 133040.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 2 mm
Bending radius relevant for ow rate: 8 mm
Inside diameter: 1.2 mm
Min. bending radius: 5 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0024 kg/m
Pneumatic connection: For plug connection outside diameter 2 mm
Color: Red
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 133040. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
