Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

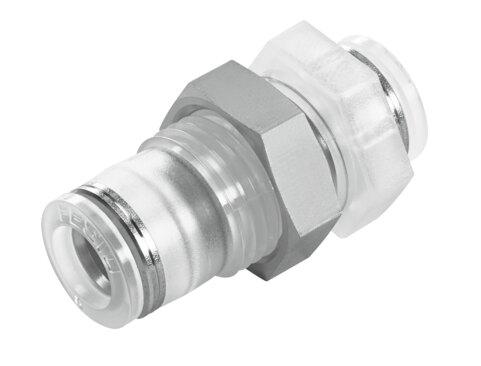

Reference imageConfirm configuration by manufacturer part number.
Festo
133100
Push-in bulkhead connector NPQP-H-Q4-E-FD
The Festo 133100 is a standard bulkhead industrial component featuring a 2.3 mm nominal width and a push-pull structural design for 4 mm outside diameter pneumatic tubing on both connections. Built with a polypropylene housing, a high-alloy stainless steel nut, and a transparent white releasing ring, it delivers CRC 4 corrosion resistance and VDMA24364 Zone III LABS conformity within an ambient temperature range of -20 °C to 60 °C. This part operates on compressed air conforming to ISO 8573-1:2010 [7:-:-], supporting lubricated operation and an operating pressure of -0.095 MPa to 1 MPa depending on the temperature. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.3 mm
- Design
- Bulkhead
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.45 MPa | -0.95 bar...4.5 bar | -13.775 psi...65.25 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 7.2 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- transparent white
- Note on materials
- RoHS compliant
- Housing material
- PP
- Nut material
- high-alloy stainless steel
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
