Festo
133122

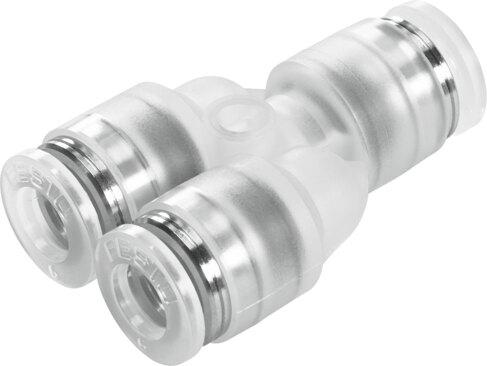

Push-in Y-connector NPQP-Y-Q10-E-FD-P10
The Festo part number 133122 is a standard Y-shaped industrial component featuring a 6.7 mm nominal width and a push-pull structural design for 10 mm outside diameter pneumatic tubing connections. Constructed with a polypropylene housing, high-alloy stainless steel tube retaining claw, and a transparent white releasing ring, it operates within a temperature range of -20 °C to 60 °C using compressed air according to ISO 8573-1:2010 [7:-:-]. This pack size of 10 offers a corrosion resistance class of 4 for particularly high corrosion stress, VDMA24364 Zone III LABS conformity, RoHS compliance, and supports lubricated operation with operating pressures ranging from -0.095 MPa to 1 MPa depending on the temperature. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133122
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133122.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 6.7 mm
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.45 MPa | -0.95 bar...4.5 bar | -13.775 psi...65.25 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 22 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- transparent white
- Note on materials
- RoHS compliant
- Housing material
- PP
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133122. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
