Festo
133143

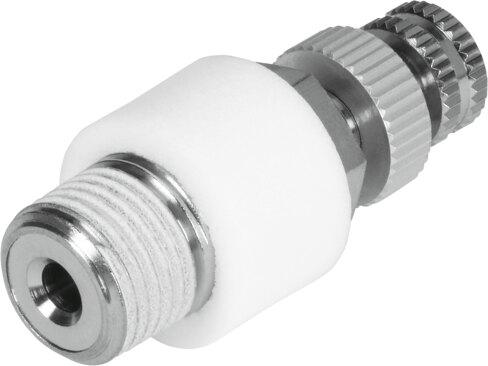

Flow control/muffler VFFK-C-K-R14-P
The Festo 133143 is an industrial component featuring a sound pressure flow control function with an integrated muffler and an R1/4 pneumatic connection. Featuring a screw-in mounting type, nickel-plated brass screwed plug and adjusting screw, and a knurled screw adjusting element, this 25 g unit operates across a pressure range of 0 bar to 10 bar and temperatures from 0 °C to 60 °C. It delivers a standard flow rate from 6 to 0 bar of 0 l/min to 420 l/min using compressed air as per ISO 8573-1:2010 [7:4:4] with possible lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133143
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133143.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Sound pressure ow control function
- Selection of additional function
- with muffler
- Pneumatic connection 1
- R1/4
- Adjusting element
- Knurled screw
- Type of mounting
- Screw-in
- Standard ow rate 6->0 bar
- 0 l/min...420 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Product weight
- 25 g
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Material of adjusting screw
- Brass, nickel-plated
