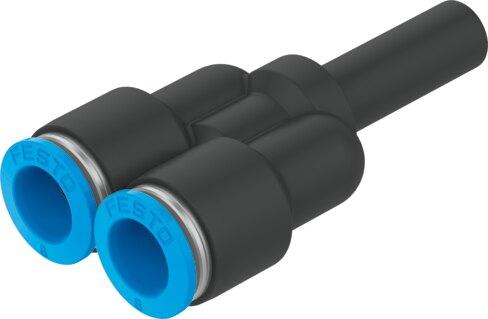

Reference imageConfirm configuration by manufacturer part number.
Festo
133145
Push-in Y-connector QSY-6H-B
The Festo 133145 is a Y-shape industrial component featuring a standard size, a nominal width of 3.1 mm, a tubing insertion depth of 17 mm, one supply line, and two outlets with a push-in sleeve diameter of 6 mm. This push-pull structural design supports any mounting position, an operating pressure ranging from -0.95 bar to 6 bar across the entire temperature range, and an ambient temperature range of -10 °C to 80 °C with a product weight of 8.5 g. Compatible with compressed air and liquid water, the unit allows lubricated operation and maintains a corrosion resistance class of 1 alongside ISO Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 10-pack configuration.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133145
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133145.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3.1 mm
- Tubing insertion depth
- 17 mm
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 8.5 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Pneumatic connection 1
- Push-in sleeve Ø 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133145. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
