Festo
133178

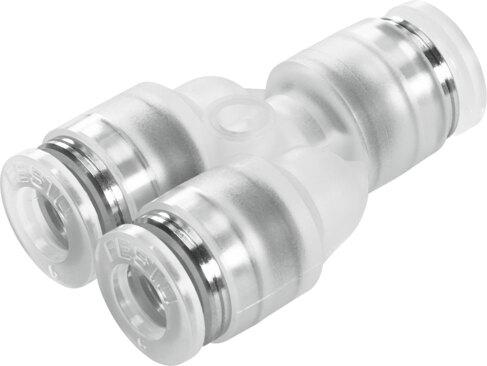

Push-in Y-connector NPQP-Y-Q6-E-FD
The Festo part number 133178 is a standard Y-shaped industrial component featuring a nominal width of 4.3 mm and a push-pull structural design with pneumatic connections for 6 mm outside diameter tubing at both ports. Constructed with a polypropylene housing, a high-alloy stainless steel tube retaining claw, and a transparent white releasing ring, this component provides a corrosion resistance class of 4 and VDMA24364 Zone III LABS conformity. It operates with compressed air according to ISO 8573-1:2010 [7:-:-] within a temperature range of -20 °C to 60 °C, supporting an operating pressure of -0.095 MPa to 0.45 MPa across the entire temperature range and up to 1 MPa depending on the temperature. Submit the exact part number, quantity, and application requirements to receive a quote for this 9 g Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133178
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133178.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.3 mm
- Design
- Y-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.45 MPa | -0.95 bar...4.5 bar | -13.775 psi...65.25 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 9 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- transparent white
- Note on materials
- RoHS compliant
- Housing material
- PP
- Material of tube retaining claw
- high-alloy stainless steel
