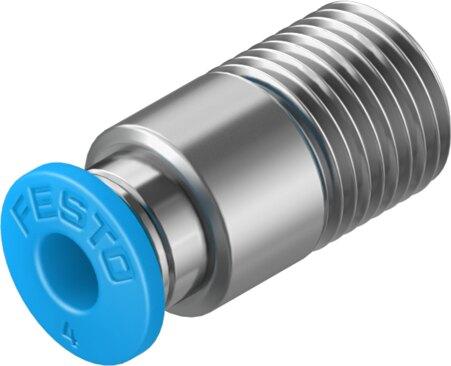

Reference imageConfirm configuration by manufacturer part number.
Festo
133191
Push-in fitting QS-1/8-4-I-100
The Festo 133191 is a straight industrial component featuring a push-pull structural design with a nominal width of 2.6 mm and a 14.9 mm tubing insertion depth. It includes an external thread R1/8 pneumatic connection 1 and accommodates a 4 mm outside diameter pneumatic tubing connection 2, utilizing a coated screwed plug seal and an internal hex AF2.5 mounting type. This part operates across an ambient temperature range of -10 °C to 80 °C with compressed air or liquid water, supporting an operating pressure of -0.095 MPa to 0.6 MPa for the entire temperature range and up to 1.4 MPa in temperature-dependent conditions. Available in a pack size of 100 with a product weight of 6.6 g each, it achieves ISO 14644-1 Class 4 cleanroom suitability and a low corrosion stress CRC of 1. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133191
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133191.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.6 mm
- Tubing insertion depth
- 14.9 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 6.6 g
- Type of mounting
- Internal hex AF2.5
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133191. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
