Festo
1336611

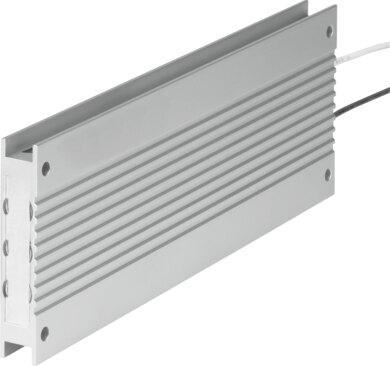

Braking resistor CACR-LE2-72-W500
The Festo size 500 industrial component, part number 1336611, features a 72 Ohm resistance value and an IP65 degree of protection with RoHS compliant materials. This 550 g unit delivers a braking resistor nominal power of 200 W, an output of 500 W at a 35% duty cycle and 20°C, and a pulse energy braking resistor rating of 2000 Ws at 380 V or 1800 Ws at 780 V. Certified by c CSA us (OL) and c UL us - recognized (OL), it supports vertical or open convection mounting in ambient temperatures from 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1336611
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1336611.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 500
- Mounting position
- Open convection | Vertical
- Pulse energy braking resistor at 380 V
- 2000 Ws
- Pulse energy braking resistor at 780 V
- 1800 Ws
- Output at 35% duty cycle and 20°C
- 500 W
- Braking resistor nominal power
- 200 W
- Braking resistor nominal power at 380 V
- 150 W
- Braking resistor nominal power at 780 V
- 120 W
- Resistance value
- 72 Ohm
- Certication
- c CSA us (OL) | c UL us - recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 550 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Note on materials
- RoHS compliant
