Festo
1336615

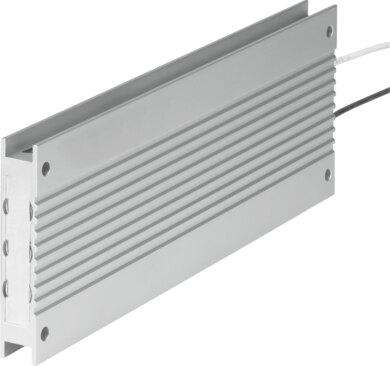

Braking resistor CACR-LE2-100-W500
The Festo industrial component 1336615 is a 550 g braking resistor featuring a size 500 design with a 100 Ohm resistance value and IP65 degree of protection. It delivers a nominal power of 200 W, an output of 500 W at a 35% duty cycle and 20°C, a pulse energy braking resistor rating of 2000 Ws at 380 V, and a pulse energy braking resistor rating of 1800 Ws at 780 V. Certified with c CSA us (OL) and c UL us - recognized (OL) ratings, this RoHS compliant unit supports vertical or open convection mounting positions within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1336615
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1336615.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 500
- Mounting position
- Open convection | Vertical
- Pulse energy braking resistor at 380 V
- 2000 Ws
- Pulse energy braking resistor at 780 V
- 1800 Ws
- Output at 35% duty cycle and 20°C
- 500 W
- Braking resistor nominal power
- 200 W
- Braking resistor nominal power at 380 V
- 150 W
- Braking resistor nominal power at 780 V
- 120 W
- Resistance value
- 100 Ohm
- Certication
- c CSA us (OL) | c UL us - recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 550 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1336615. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
