1336619

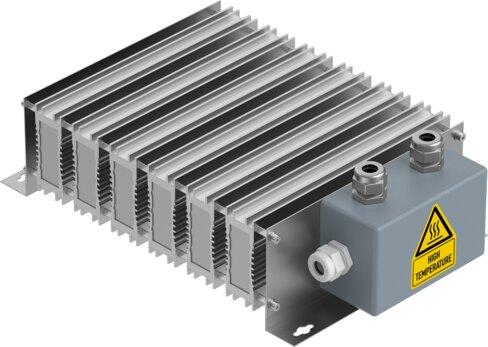

Name: Festo 1336619 Braking resistor CACR-KL2-33-W2400
Brand: Festo

Braking resistor CACR-KL2-33-W2400

The Festo size 600 industrial component, part number 1336619, is an IP65-rated braking resistor featuring a 33 Ohm resistance value and a product weight of 8000 g. This RoHS-compliant unit delivers an output of 3600 W at a 35% duty cycle and 20°C, alongside a nominal power of 1440 W and a pulse energy braking resistor rating of 21600 Ws at both 380 V and 780 V. It holds c CSA us (OL) and c UL us - recognized (OL) certifications, conforms to VDMA24364 Zone III LABS (PWIS) standards, and supports an ambient temperature range of 0 °C to 50 °C for vertical or open convection mounting via through-hole or accessories. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1336619
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1336619.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 600
Mounting position: Open convection | Vertical
Pulse energy braking resistor at 380 V: 21600 Ws
Pulse energy braking resistor at 780 V: 21600 Ws
Output at 35% duty cycle and 20°C: 3600 W
Braking resistor nominal power: 1440 W
Braking resistor nominal power at 380 V: 1440 W
Braking resistor nominal power at 780 V: 1440 W
Resistance value: 33 Ohm
Certication: c CSA us (OL) | c UL us - recognized (OL)
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65
Ambient temperature: 0 °C...50 °C
Product weight: 8000 g
Type of mounting: Alternatively: | With through-hole | With accessories
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1336619. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
