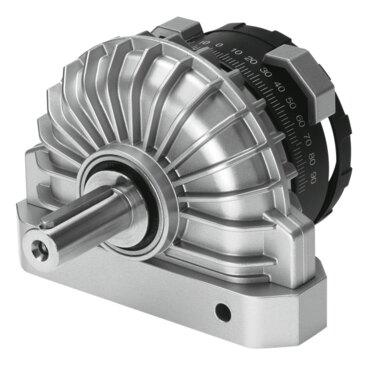

Reference imageConfirm configuration by manufacturer part number.
Festo
13467
Quarter turn actuator DSR-40-180-P
The Festo part number 13467 is a double-acting rotary vane industrial component featuring a size of 40 and an adjustable swivel angle range from 0 deg to 180 deg with a 0.9 deg cushioning angle. Operating on compressed air as per ISO 8573-1:2010 [7:-:-] within a pressure range of 0.15 MPa to 0.8 MPa, it delivers a theoretical torque of 20 Nm at 6 bar and includes elastic cushioning rings or pads at both ends. This model weighs 2400 g, supports any mounting position via through-hole installation with a G1/4 pneumatic connection, and accommodates a max. axial force of 120 N alongside a max. radial force of 350 N. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13467
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13467.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Cushioning angle
- 0.9 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 120 N
- Max. radial force
- 350 N
- Theoretical torque at 6 bar
- 20 Nm
- Product weight
- 2400 g
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/4
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13467. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
