Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1356949

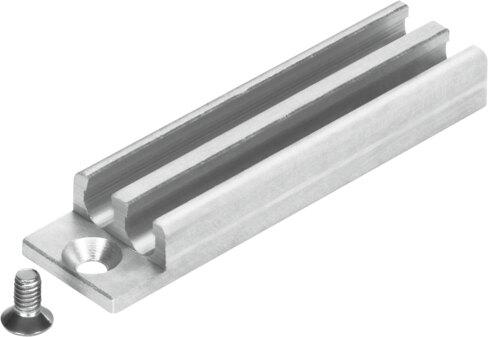

Sensor rail DASP-G3-51-C-D
The Festo 1356949 is a size 51 wrought aluminum alloy sensor rail featuring an anodized profile and high-alloy stainless steel screws. This industrial component is screwed on to a pneumatic gripper in any mounting position and operates within an ambient temperature range of 5 °C to 60 °C. It provides a product weight of 6 g, RoHS compliant materials, VDMA24364 Zone III LABS conformity, and a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1356949
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1356949.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 51
- Mounting position
- Any
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 6 g
- Type of mounting
- Screwed on to pneumatic gripper
- Note on materials
- RoHS compliant
- Prole material
- Wrought aluminum alloy, anodized
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1356949. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
