Festo
1360248

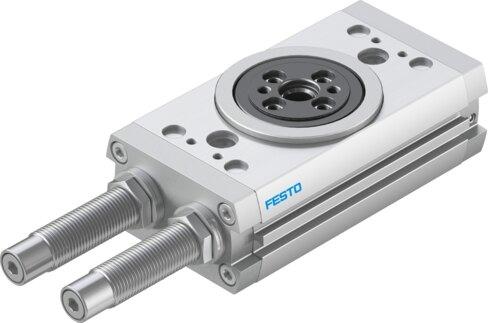

Rotary actuator DRRD-25-180-FH-Y9A
The Festo part number 1360248 is a double-acting industrial component utilizing a gear rack and pinion structural design with a size 25 format, a 180-degree swivel angle, and a 79-degree cushioning angle. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.2 MPa to 1 MPa pressure range, this unit delivers a theoretical torque of 5.15 Nm at 6 bar and features internal hydraulic cushioning normal alongside position sensing via a proximity switch. It offers an adjustable setting range of swivel angle for each end position of +10 to -190 degrees, a permissible mass moment of inertia of 0.15 kgm², an ambient temperature range of -10 °C to 60 °C, and alternative mounting via through-hole or internal thread with an M5 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 1358 g RoHS-compliant component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1360248
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1360248.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Cushioning angle
- 79 deg
- Setting range of swivel angle for each end position
- +10 /-190 deg
- Swivel angle
- 180 deg
- Cushioning
- Internal hydraulic cushioning normal
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Theoretical torque at 6 bar
- 5.15 Nm
- Permissible mass moment of inertia
- 0.15 kgm²
- Product weight
- 1358 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Quenched and tempered steel
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1360248. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
