Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1361865

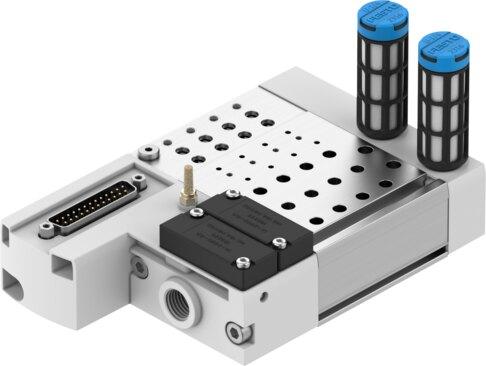

Manifold rail VABM-C8-12E-G14-4-M1-L
This Festo industrial component, designated by part number 1361865, is a wrought aluminum alloy manifold rail with a width dimension of 12 mm and a product weight of 484 g. It accommodates a maximum of 4 valve positions and features G1/4 pneumatic connections for ports 1, 3, and 5. The unit has a corrosion resistance class of CRC 0 for no corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials, requiring a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1361865
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1361865.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 12 mm
- Max. no. of valve positions
- 4
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.6 Nm
- Max. tightening torque for wall mounting
- 5 Nm
- Product weight
- 484 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1361865. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
