Festo
1366257

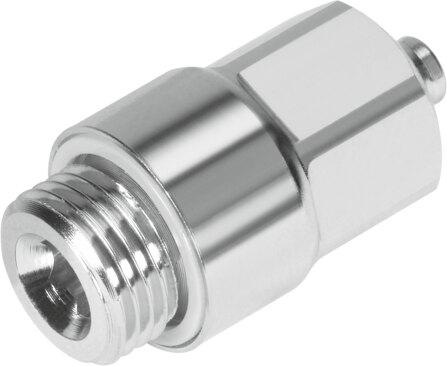

Fitting NPCK-C-D-G18-K6
The Festo industrial component, part number 1366257, is a straight design fitting featuring a 2.9 mm nominal width and a sealing ring on the screwed plug for mounting in any position. It operates across a pressure range of -0.095 MPa to 1.2 MPa for compressed air and handles water up to 0.6 MPa at 0 to 85 °C, with a maximum operating temperature of 120 °C for water vapor. Built with a corrosion resistance class of 4, IP69K degree of protection, and reduced Cu/Zn/Ni values suitable for Li-ion battery production, this 14.1 g part requires a nominal tightening torque of 6.5 Nm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1366257
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1366257.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 85 °C | Water vapor: 0 - 0.15 MPa, 0 - 1.5 bar, 0 - 22 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free) | Water vapor
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- For use in the food industry
- See supplementary material information
- Note on temperature of medium
- Water vapor: max. 120 °C
- Degree of protection
- IP69K
- Ambient temperature
- -20 °C...120 °C
- Note on ambient temperature
- Using suitable tubing and maximum operating pressure of the tube, the | N PCK can be used from -40 to 60 °C.
- Nominal tightening torque
- 6.5 Nm
- Note on the nominal tightening torque
- 4 Nm +/-10% for NPCK to MPA-C
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 14.1 g
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Material of union nut
- high-alloy stainless steel
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Sealing ring material
- PEEK
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1366257. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
