Festo
1369111

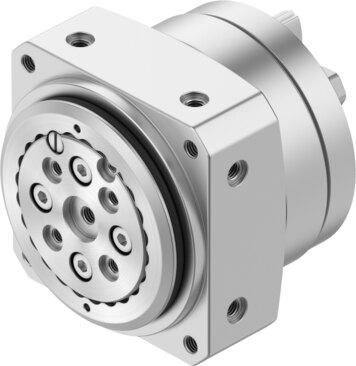

Rotary actuator DSM-16-270-HD-A-B
The Festo part number 1369111 is a double-acting rotary vane industrial component featuring a size 16 design with a 0 deg to 270 deg swivel angle and internal thread mounting. It operates within a pressure range of 0.3 MPa to 1 MPa and delivers a theoretical torque of 2.5 Nm at 6 bar with a maximum swivel frequency of 1.5 Hz. Weighing 625 g, this unit accommodates any mounting position, a permissible stop radius of 17 mm, and functions with compressed air under ISO 8573-1:2010 [7:-:-] standards within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 17 mm
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Max. swivel frequency at 6 bar
- 1.5 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 160 N
- Max. axial force
- 290 N
- Max. radial force
- 300 N
- Theoretical torque at 6 bar
- 2.5 Nm
- Product weight
- 625 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
- Housing material
- Anodized aluminum
