Festo
1369113

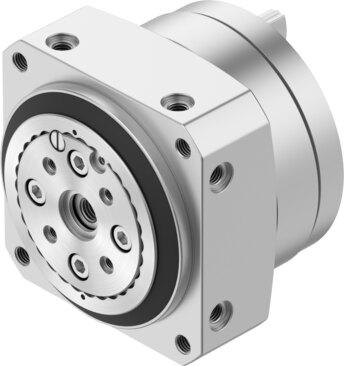

Rotary actuator DSM-32-270-HD-A-B
The Festo 1369113 is a double-acting industrial component utilizing a rotary vane structural design with a size of 32 and an adjustable swivel angle from 0 degrees to 270 degrees. This unit operates at pressures ranging from 0.2 MPa to 1 MPa using compressed air according to ISO 8573-1:2010 [7:-:-], delivering a theoretical torque of 10 Nm at 6 bar with a maximum swivel frequency of 1.5 Hz. It features internal thread mounting, a permissible stop radius of 28 mm, and accommodates a maximum stop force of 480 N, axial force of 450 N, and radial force of 550 N within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369113
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369113.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 28 mm
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 1.5 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 480 N
- Max. axial force
- 450 N
- Max. radial force
- 550 N
- Theoretical torque at 6 bar
- 10 Nm
- Product weight
- 1810 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
- Housing material
- Anodized aluminum
