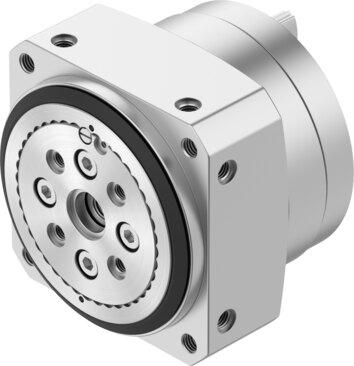

Reference imageConfirm configuration by manufacturer part number.
Festo
1369114
Rotary actuator DSM-40-270-HD-A-B
The Festo 1369114 is a double-acting rotary vane industrial component featuring a size 40 designation and a swivel angle ranging from 0 degrees to 270 degrees with a permissible stop radius of 40 mm. Operating on compressed air per ISO 8573-1:2010 [7:-:-] at pressures between 0.2 MPa and 1 MPa, this unit delivers a theoretical torque of 20 Nm at 6 bar with a maximum swivel frequency of 1.5 Hz. It offers universal mounting capability via internal thread, handling a maximum stop force of 650 N, axial force of 950 N, and radial force of 1200 N across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 3712 g component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369114
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369114.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 40 mm
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 1.5 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 650 N
- Max. axial force
- 950 N
- Max. radial force
- 1200 N
- Theoretical torque at 6 bar
- 20 Nm
- Product weight
- 3712 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
- Housing material
- Anodized aluminum
