Festo
1369119

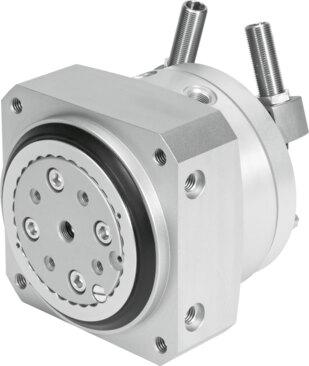

Rotary actuator DSM-32-270-P1-HD-A-B
The Festo Size 32 rotary vane industrial component operates in a double-acting mode with compressed air conforming to ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar). Featuring a swivel angle and adjustment range of 0 deg to 246 deg, a cushioning angle of 6.5 deg, and elastic cushioning rings or pads at both ends with a fixed stop, this part achieves a repetition accuracy of 0.1 deg and a max stop force of 480 N. It includes position sensing via proximity switch, allows any mounting position, and supports an ambient temperature range of -10 °C to 60 °C with a max swivel frequency of 1.5 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369119
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369119.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Cushioning angle
- 6.5 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Swivel angle
- 0 deg...246 deg
- Permissible stop radius
- 28 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 1.5 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 480 N
- Max. axial force
- 450 N
- Max. radial force
- 550 N
- Theoretical torque at 6 bar
- 10 Nm
- Permissible mass moment of inertia
- 0.075 kgm²
- Product weight
- 2035 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1369119. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
