Festo
1369120

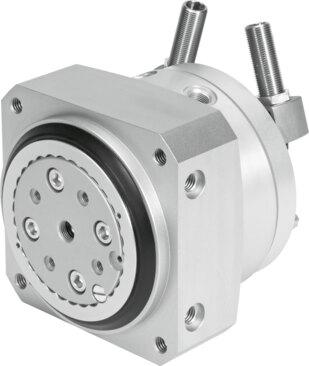

Rotary actuator DSM-40-270-P1-HD-A-B
The Festo Size 40 double-acting industrial component features a rotary vane structural design with an adjustment range of swivel angle from 0 deg to 240 deg and a 6.5 deg cushioning angle. Operating on compressed air within a 0.2 MPa to 1 MPa pressure range, the unit incorporates elastic cushioning rings or pads at both ends with a fixed stop, achieves a repetition accuracy of 0.1 deg, and enables position sensing via a proximity switch. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369120
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369120.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Cushioning angle
- 6.5 deg
- Adjustment range of swivel angle
- 0 deg...240 deg
- Swivel angle
- 0 deg...240 deg
- Permissible stop radius
- 40 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 1.5 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 650 N
- Max. axial force
- 950 N
- Max. radial force
- 1200 N
- Theoretical torque at 6 bar
- 20 Nm
- Permissible mass moment of inertia
- 0.105 kgm²
- Product weight
- 4100 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1369120. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
