Festo
1369121

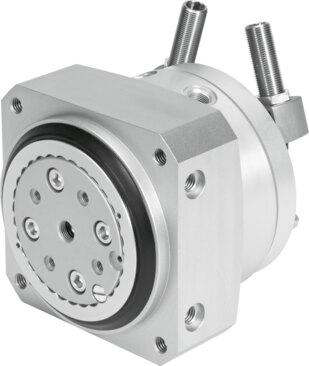

Rotary actuator DSM-63-270-P1-HD-A-B
The Festo part number 1369121 is a double-acting rotary vane industrial component featuring a size 63 design with a swivel angle and adjustment range of 0 deg to 240 deg. This unit operates at a pressure of 0.2 MPa to 1 MPa (2 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:-:-], incorporating elastic cushioning rings/pads at both ends with a fixed stop, a 6 deg cushioning angle, and a -6 deg precision adjustment. Position sensing is achieved via proximity switch, and the mechanism delivers a repetition accuracy of 0.1 deg, a maximum stop force of 1050 N, and a maximum swivel frequency of 1 Hz at 6 bar across an ambient temperature range of -10 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369121
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369121.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Cushioning angle
- 6 deg
- Adjustment range of swivel angle
- 0 deg...240 deg
- Swivel angle
- 0 deg...240 deg
- Permissible stop radius
- 50 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 1 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 1050 N
- Max. axial force
- 1300 N
- Max. radial force
- 1600 N
- Theoretical torque at 6 bar
- 40 Nm
- Permissible mass moment of inertia
- 0.45 kgm²
- Product weight
- 6600 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
