Festo
1369124

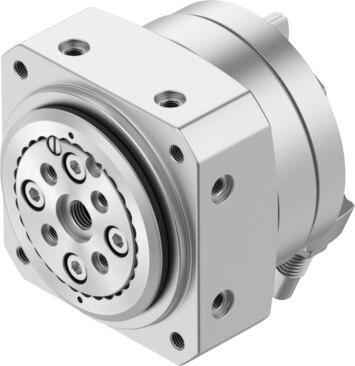

Rotary actuator DSM-25-270-CC-HD-A-B
The Festo part number 1369124 is a double-acting rotary vane industrial component featuring a size 25 design with an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and a swivel angle and adjustment range from 0 deg to 246 deg. This unit includes pneumatic shock absorber cushioning at both ends, a 10 deg cushioning angle, a -3 deg precision adjustment, a 21 mm permissible stop radius, 320 N max stop force, and position sensing via proximity switch. It operates with compressed air as per ISO 8573-1:2010 [7:-:-], accommodates oil lubrication, and delivers a max swivel frequency of 1 Hz at 6 bar with a repetition accuracy of 0.1 deg across an ambient temperature range of -10 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369124
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369124.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Cushioning angle
- 10 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Swivel angle
- 0 deg...246 deg
- Permissible stop radius
- 21 mm
- Cushioning
- Pneumatic shock absorber at both ends
- Mounting position
- Any
- Precision adjustment
- -3 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 1 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 320 N
- Max. axial force
- 350 N
- Max. radial force
- 450 N
- Theoretical torque at 6 bar
- 5 Nm
- Permissible mass moment of inertia
- 0.03 kgm²
- Product weight
- 1010 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
