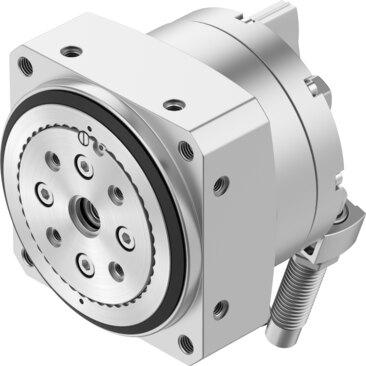

Reference imageConfirm configuration by manufacturer part number.
Festo
1369127
Rotary actuator DSM-63-270-CC-HD-A-B
The Festo part number 1369127 is a double-acting rotary vane industrial component featuring a size 63 design with an adjustable swivel angle ranging from 0 degrees to 240 degrees and a precision adjustment of -3 degrees. It incorporates a pneumatic shock absorber at both ends for cushioning across a 17.5-degree cushioning angle, a permissible stop radius of 50 mm, and a maximum stop force of 1050 N. Operating within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) on compressed air conforming to ISO 8573-1:2010 [7:-:-], this unit achieves a repetition accuracy of 0.1 degrees and a maximum swivel frequency of 0.5 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1369127
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1369127.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Cushioning angle
- 17.5 deg
- Adjustment range of swivel angle
- 0 deg...240 deg
- Swivel angle
- 0 deg...240 deg
- Permissible stop radius
- 50 mm
- Cushioning
- Pneumatic shock absorber at both ends
- Mounting position
- Any
- Precision adjustment
- -3 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 0.5 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 1050 N
- Max. axial force
- 1300 N
- Max. radial force
- 1600 N
- Theoretical torque at 6 bar
- 40 Nm
- Permissible mass moment of inertia
- 0.5 kgm²
- Product weight
- 6660 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1369127. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
