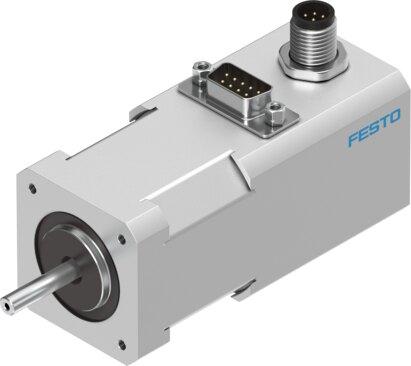

Reference imageConfirm configuration by manufacturer part number.
Festo
1370471
Stepper motor EMMS-ST-42-S-SE-G2
The Festo part number 1370471 is an industrial component featuring a nominal operating voltage of 48 V DC, a motor holding torque of 0.5 Nm, and a maximum rotational speed of 1740 rpm with a 1.8-degree full step angle and ±5% tolerance. Conforming to IEC 60034 with an IP54 degree of protection, insulation protection class B, thermal class B, and S1 rating class, it operates in ambient temperatures from -10 °C to 50 °C and withstands storage temperatures from -20 °C to 70 °C at a relative air humidity of 0 to 85%. This RoHS-compliant unit has a low corrosion stress CRC rating of 1, VDMA24364-B2-L LABS conformity, plug electrical connection technology, and carries CE, UKCA, RCM, and c UL us certifications alongside compliance with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1370471
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1370471.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 85 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- B
- Thermal class according to EN 60034-1
- B
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP54
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal operating voltage DC
- 48 V
- Motor holding torque
- 0.5 Nm
- Max. rotational speed
- 1740 rpm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Motor nominal current
- 1.8 A
- Voltage constant, phase
- 23 mVmin
- Phase winding resistance
- 1.75 Ohm
- Winding inductance phase
- 3.3 mH
- Rotor mass moment of inertia
- 0.082 kgcm²
- Total output inertia moment
- 0.082 kgcm²
- Product weight
- 450 g
- Permissible axial shaft load
- 7 N
- Permissible radial shaft load
- 20 N
