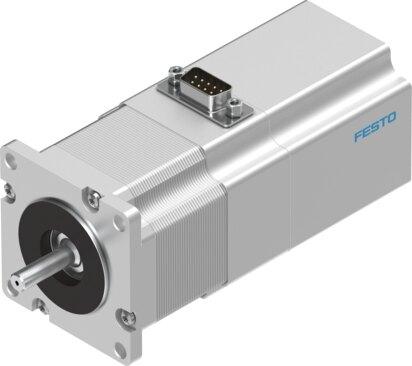

Name: Festo 1370476 Stepper motor EMMS-ST-57-S-SB-G2
Brand: Festo

Stepper motor EMMS-ST-57-S-SB-G2

The Festo 1370476 industrial component operates at a nominal DC voltage of 48 V, delivering a motor holding torque of 0.8 Nm and a maximum rotational speed of 2720 rpm with a 1.8-deg full step angle. Built to IEC 60034 standards, the unit features an IP54 degree of protection, Class B insulation and thermal rating, and S1 rating class for ambient temperatures between -10 °C and 50 °C. It holds RCM and c UL us certifications, complies with EU and UKCA directives for EMC and RoHS, and incorporates plug electrical connection technology with RoHS-compliant and LABS-conforming materials of CRC 1 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1370476
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1370476.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -10 °C...50 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 85 %
Conforms to standard: IEC 60034
Insulation protection class: B
Thermal class according to EN 60034-1: B
Rating class according to EN 60034-1: S1
Degree of protection: IP54
Electrical connection technology: Plug
Note on materials: RoHS-compliant
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Certication: RCM compliance mark | c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Nominal operating voltage DC: 48 V
Motor holding torque: 0.8 Nm
Max. rotational speed: 2720 rpm
Step angle with full step: 1.8 deg
Step angle tolerance: ±5%
Motor nominal current: 5 A
Voltage constant, phase: 12 mVmin
Phase winding resistance: 0.15 Ohm
Winding inductance phase: 0.5 mH
Rotor mass moment of inertia: 0.29 kgcm²
Total output inertia moment: 0.3 kgcm²
Product weight: 1090 g
Permissible axial shaft load: 10 N
Permissible radial shaft load: 52 N
