Festo
1370487

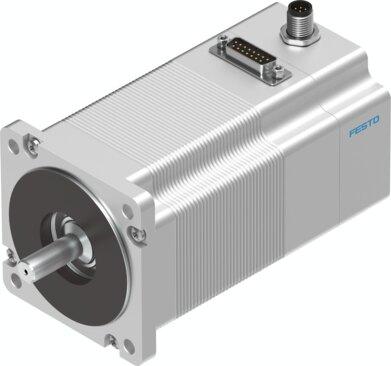

Stepper motor EMMS-ST-87-M-SE-G2
The Festo 1370487 industrial component is a 48 V DC motor featuring a 5.9 Nm holding torque, a maximum rotational speed of 550 rpm, and a 1.8-degree full step angle with a ±5% tolerance. It operates within an ambient temperature range of -10 °C to 50 °C, supports storage temperatures from -20 °C to 70 °C, and maintains an IP54 degree of protection with Class B insulation. Conforming to IEC 60034, EN 60034-1 thermal and S1 rating classes, this unit includes a plug electrical connection, RoHS compliance, low corrosion stress CRC 1 rating, and VDMA24364-B2-L LABS conformity. Certifications and markings comprise RCM compliance, cULus recognition, CE marking per the EU EMC directive, and UKCA compliance for EMC and RoHS. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1370487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1370487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 85 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- B
- Thermal class according to EN 60034-1
- B
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP54
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal operating voltage DC
- 48 V
- Motor holding torque
- 5.9 Nm
- Max. rotational speed
- 550 rpm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Motor nominal current
- 9.5 A
- Voltage constant, phase
- 68.6 mVmin
- Phase winding resistance
- 0.23 Ohm
- Winding inductance phase
- 2.6 mH
- Rotor mass moment of inertia
- 1.9 kgcm²
- Total output inertia moment
- 1.9 kgcm²
- Product weight
- 3200 g
- Permissible axial shaft load
- 65 N
- Permissible radial shaft load
- 200 N
- Rotor position sensor
- Incremental encoder
