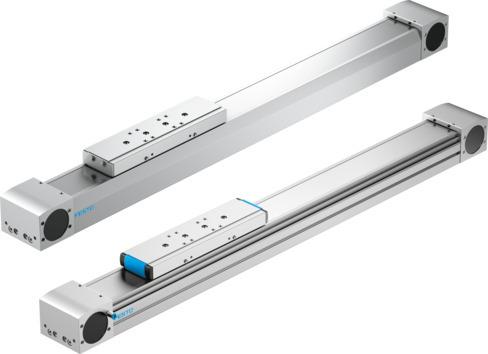

Reference imageConfirm configuration by manufacturer part number.
Festo
1371245
Belt driven linear actuator ELGA-TB-RF-70-
The Festo 1371245 is an electromechanical linear axis with a toothed belt featuring a size 70 structural design, a roller guide, and a 3 mm toothed belt pitch with an effective drive pinion diameter of 28.65 mm. Configured for a working stroke between 50 mm and 7000 mm driven by a servo motor with an incremental linear potentiometer measuring principle, this unit achieves a maximum speed of 10 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.08 mm, and a 100% duty cycle across an ambient temperature range of -10 °C to 60 °C. The assembly offers a 90 mm/U feed constant, IP40 protection, VDMA24364 Zone III LABS conformity, and supports any mounting position with a maximum dynamic deflection of 0.05% of the axis length and static deflection of 0.1%. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1371245
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1371245.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 50 mm...7000 mm
- Size
- 70
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Roller guide
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 10 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Feed constant
- 90 mm/U
- Dynamic deection (load moved)
- 0.05% of axis length, maximum 0.5 mm
- Static deection (load at standstill)
- 0.1 % of axis length
- Prole material
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Cover strip material
- Stainless strip steel
- Drive cover material
- Wrought aluminum alloy, anodized
- Guide material
- Steel
- Belt pulley material
- high-alloy stainless steel
- Slide material
- Wrought aluminum alloy, anodized
- Toothed belt clamping component material
- Cast stainless steel
- Toothed belt material
- Polyurethane with steel cord and nylon cover | Polyurethane with steel cord
