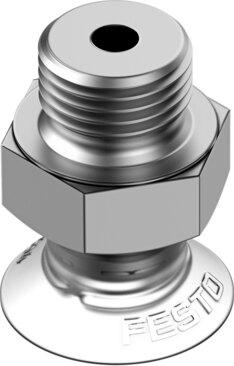

Reference imageConfirm configuration by manufacturer part number.
Festo
1376604
Vacuum suction cup VAS-15-1/8-SI-B
The Festo 1376604 is a round, flat industrial component featuring a 15 mm suction cup diameter, a 12.4 mm effective suction cup diameter, and a 3 mm nominal width with an upward connection position. Engineered for a -0.095 MPa to 0 MPa operating pressure range, it delivers a holding force of 8.5 N at a nominal operating pressure of -0.07 MPa while operating within an ambient temperature range of -40 °C to 200 °C. This 4 g transparent part provides a 1.2 mm suction cup height compensation, a 0.328 cm³ suction cup volume, a G1/8 vacuum connection, and moderate corrosion resistance with a CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1376604
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1376604.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 1.2 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 15 mm
- Suction cup volume
- 0.328 cm³
- Effective suction cup diameter
- 12.4 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -40 °C...200 °C
- Holding force at nominal operating pressure
- 8.5 N
- Product weight
- 4 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/8
- Color
- Transparent
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- VMQ (silicone)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1376604. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
