Festo
1376905

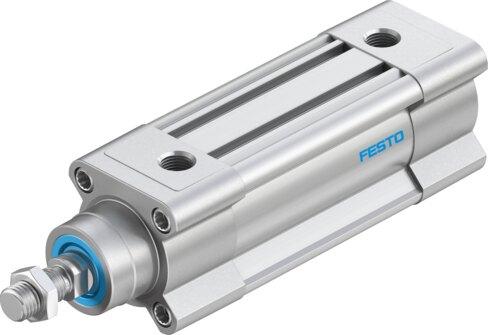

ISO cylinder DSBC-40-50-PPSA-N3
The Festo 1376905 is a double-acting industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and an M12x1.25 external piston rod thread conforming to ISO 15552. Built with a piston, piston rod, and profile barrel design, this unit includes self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and operates within a pressure range of 0.06 MPa to 1.2 MPa using compressed air per ISO 8573-1:2010 [7:4:4]. It offers a moderate corrosion resistance class of CRC 2, an ambient temperature range of -20 °C to 80 °C, and Class 5 cleanroom suitability according to ISO 14644-1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1376905
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1376905.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1.2 MPa | 0.6 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.7 J
- Cushioning length
- 19 mm
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass
- 285 g
- Moving mass at 0 mm stroke
- 205 g
- Additional moving mass per 10 mm stroke
- 16 g
- Product weight
- 925 g
- Basic weight with 0 mm stroke
- 740 g
- Additional weight per 10 mm stroke
- 37 g
- Type of mounting
- Alternatively: | With internal thread
