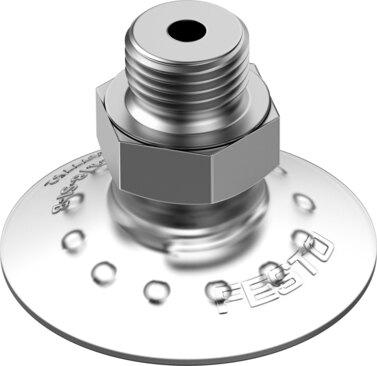

Reference imageConfirm configuration by manufacturer part number.
Festo
1377752
Vacuum suction cup VAS-30-1/8-SI-B
The Festo 1377752 is a round, flat transparent industrial component featuring a 30 mm suction cup diameter, a 1.9 mm height compensation, and a nominal width of 3 mm. Operating at a nominal pressure of -0.07 MPa with an effective suction cup diameter of 23.7 mm, this 5 g part provides a holding force of 31 N and withstands ambient temperatures ranging from -40 °C to 200 °C. It includes a G1/8 vacuum connection positioned upward, supports any mounting position, and conforms to CRC 2 moderate corrosion stress alongside VDMA24364 Zone III LABS standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1377752
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1377752.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 1.9 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 30 mm
- Suction cup volume
- 1.29 cm³
- Effective suction cup diameter
- 23.7 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -40 °C...200 °C
- Holding force at nominal operating pressure
- 31 N
- Product weight
- 5 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/8
- Color
- Transparent
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- VMQ (silicone)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1377752. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
