Name: Festo 13793 Pushbutton valve K/O-3-PK-3
Brand: Festo

Pushbutton valve K/O-3-PK-3

The Festo part number 13793 is a 3/2 open/closed monostable industrial component featuring a piston seat structural design and direct control type with a 2.5 mm nominal width. Built with a polymer housing, NBR seals, and PK-3 pneumatic working ports for connections 1, 2, and 3, this 20 g unit operates within a 0 bar to 8 bar pressure range and handles a normal nominal flow rate of 80 l/min using compressed air as per ISO 8573-1:2010 [-:-:-]. It accommodates ambient temperatures from -10 °C to 60 °C, features VDMA24364-B1/B2-L LABS conformity, utilizes through-hole mounting, and requires an actuation force of 24 N in the closed initial position or 17 N in the open initial position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 13793
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 13793.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

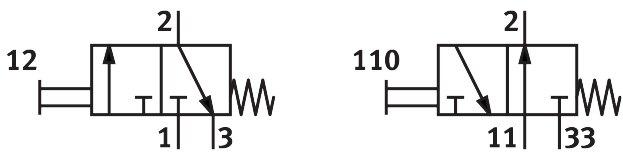

Valve function: 3/2, open/closed, monostable
Normal nominal ow rate (normalized to DIN 1343): 80 l/min
Pneumatic working port: PK-3
Operating pressure: 0 bar...8 bar
Structural design: Piston seat
Nominal width: 2.5 mm
Type of control: directly
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Actuation force in initial position closed: 24 N
Actuation force in initial position open: 17 N
Product weight: 20 g
Type of mounting: With through-hole
Pneumatic connection 1: PK-3
Pneumatic connection 2: PK-3
Pneumatic connection 3: PK-3
Seals material: NBR
Housing material: Polymer

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 13793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
