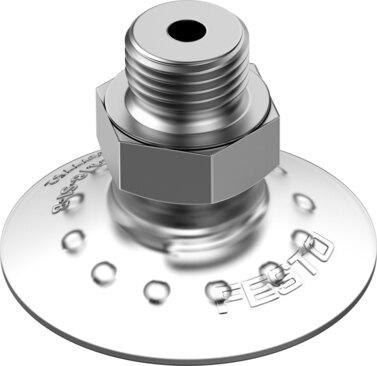

Name: Festo 1379348 Vacuum suction cup VAS-55-1/4-SI-B
Brand: Festo

Vacuum suction cup VAS-55-1/4-SI-B

The Festo 1379348 is a round, flat industrial component featuring a 55 mm suction cup diameter, an effective suction cup diameter of 44.7 mm, an 8.01 cm³ suction cup volume, and a 3.5 mm height compensation with an upward connection position and G1/4 vacuum connection for mounting. Operating within a pressure range of -0.095 MPa to 0 MPa and a nominal operating pressure of -0.07 MPa using atmospheric air based on ISO 8573-1:2010 [7:-:-], this transparent transparent part delivers an 110 N holding force at nominal operating pressure. Weighing 19 g with any mounting position, a corrosion resistance class of 2 for moderate corrosion stress, VDMA24364 Zone III LABS conformity, and an ambient temperature range of -40 °C to 200 °C, it supports use in the food industry according to supplementary material information. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1379348
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1379348.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 3.5 mm
Nominal width: 4 mm
Suction cup diameter: 55 mm
Suction cup volume: 8.01 cm³
Eﬀective suction cup diameter: 44.7 mm
Connection position: up
Mounting position: Any
Suction cup shape: Round, at
Operating pressure: -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -0.07 MPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -40 °C...200 °C
Holding force at nominal operating pressure: 110 N
Product weight: 19 g
Type of mounting: Via vacuum connection
Vacuum connection: G1/4
Color: Transparent
Shore hardness: 60 +/-5
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS compliant
Suction cup material: VMQ (silicone)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1379348. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
