Reference imageConfirm configuration by manufacturer part number.
Festo
13794

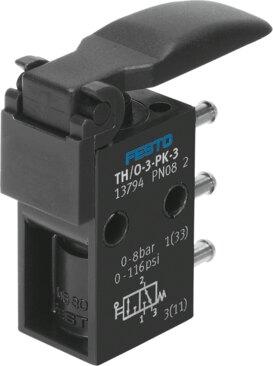

Finger lever valve TH/O-3-PK-3
The Festo 13794 is a 3/2 monostable open/closed industrial component featuring a piston seat structural design and direct control. Weighing 18 g with a polymer housing and NBR seals, this part delivers a normalized nominal flow rate of 80 l/min across an operating pressure range of 0 bar to 8 bar using ISO 8573-1:2010 [-:-:-] compressed air. It includes PK-3 pneumatic working ports, accommodates ambient temperatures from -10 °C to 60 °C, and requires an actuation force of 8 N in the closed initial position and 6 N in the open position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2, open/closed, monostable
- Normal nominal ow rate (normalized to DIN 1343)
- 80 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar...8 bar
- Structural design
- Piston seat
- Nominal width
- 2.5 mm
- Type of control
- directly
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuation force in initial position closed
- 8 N
- Actuation force in initial position open
- 6 N
- Product weight
- 18 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Pneumatic connection 3
- PK-3
- Seals material
- NBR
- Housing material
- Polymer
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
