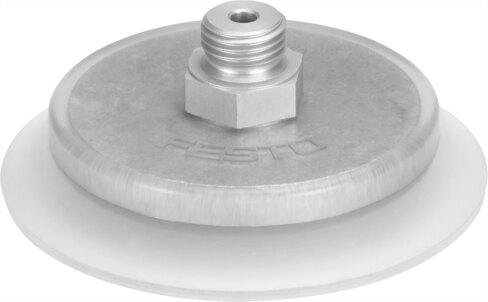

Reference imageConfirm configuration by manufacturer part number.
Festo
1382165
Vacuum suction cup VAS-75-1/4-SI-B
The Festo 1382165 is a round, flat transparent suction cup with a 75 mm diameter, a 66.7 mm effective diameter, an 18.3 cm³ volume, and a 3.5 mm height compensation. It features an upward connection position with a G1/4 vacuum connection, supports any mounting position, weighs 62 g, and delivers a holding force of 245 N at a nominal operating pressure of -0.07 MPa (-0.7 bar / -10.15 psi) within an operating pressure range of -0.095 MPa to 0 MPa (-0.95 bar to 0 bar / -13.775 psi to 0 psi). Built for atmospheric air based on ISO 8573-1:2010 [7:-:-], it operates in ambient temperatures from -40 °C to 200 °C, exhibits a corrosion resistance class of 2 for moderate corrosion stress, and complies with VDMA24364 Zone III LABS (PWIS) standards, with food industry usage detailed in supplementary materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1382165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1382165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 3.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 75 mm
- Suction cup volume
- 18.3 cm³
- Effective suction cup diameter
- 66.7 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -40 °C...200 °C
- Holding force at nominal operating pressure
- 245 N
- Product weight
- 62 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- Transparent
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- VMQ (silicone)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1382165. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
