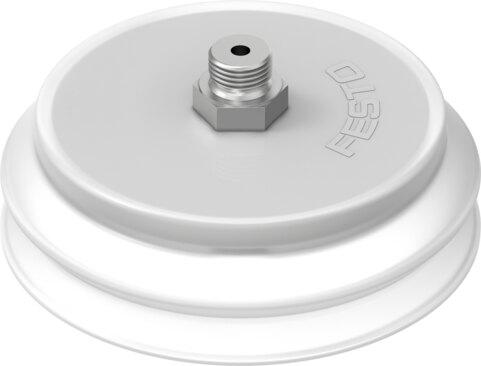

Reference imageConfirm configuration by manufacturer part number.
Festo
1382277
Vacuum suction cup VASB-100-1/4-SI-B
The Festo 1382277 is a round 1.5-fold protective bellows industrial component featuring a 100 mm suction cup diameter, 84.8 mm effective diameter, 15.5 mm height compensation, and a 128 cm³ suction cup volume with a transparent finish. Operating across a pressure range of -0.095 MPa to 0 MPa with atmospheric air per ISO 8573-1:2010 [7:-:-], this 132 g unit delivers a holding force of 395 N at a nominal operating pressure of -0.07 MPa through a G1/4 vacuum connection positioned upward. It achieves a corrosion resistance class of 2 and VDMA24364 Zone III LABS conformity, functioning within an ambient temperature range of -40 °C to 200 °C across any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1382277
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1382277.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 15.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 128 cm³
- Effective suction cup diameter
- 84.8 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -40 °C...200 °C
- Holding force at nominal operating pressure
- 395 N
- Product weight
- 132 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- Transparent
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- VMQ (silicone)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1382277. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
