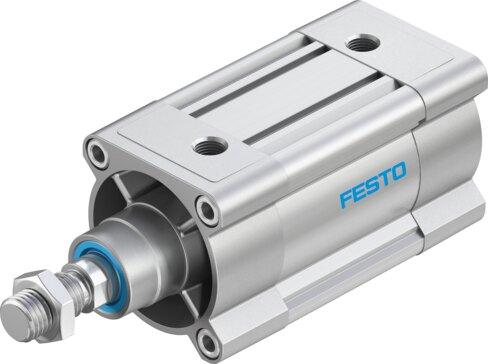

Reference imageConfirm configuration by manufacturer part number.
Festo
1383368
ISO cylinder DSBC-80-50-PPSA-N3
The Festo 1383368 is a double-acting industrial component featuring an 80 mm piston diameter, a 50 mm stroke, and an M20x1.5 external piston rod thread conforming to ISO 15552. Designed with a profile barrel structural design, this unit operates within a pressure range of 0.04 MPa to 1.2 MPa and incorporates self-adjusting pneumatic end-position cushioning with a 31 mm cushioning length. It accommodates any mounting position, utilizes compressed air per ISO 8573-1:2010 [7:4:4] as the operating medium, and delivers a theoretical retracting force of 2721 N at 6 bar while providing position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1383368
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1383368.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.8 J
- Cushioning length
- 31 mm
- Theoretical force at 6 bar, retracting
- 2721 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 1005 g
- Moving mass at 0 mm stroke
- 810 g
- Additional moving mass per 10 mm stroke
- 39 g
- Product weight
- 3120 g
- Basic weight with 0 mm stroke
- 2660 g
- Additional weight per 10 mm stroke
- 92 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
