Festo
1396067

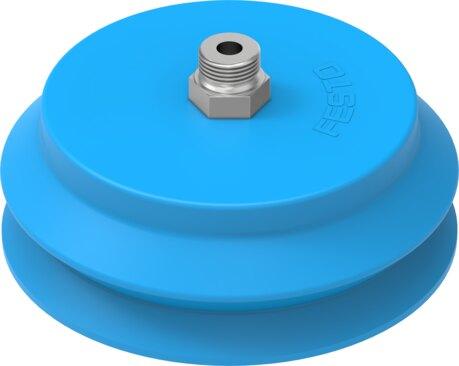

Vacuum suction cup VASB-125-3/8-PUR-B
The Festo part number 1396067 is a round protective bellows 1.5-fold industrial component featuring a 125 mm suction cup diameter, a 101.8 mm effective suction cup diameter, a 7 mm nominal width, and a 25 mm suction cup height compensation with a 307 cm³ suction cup volume. Operating at a nominal pressure of -0.7 bar (-0.07 MPa / -10.15 psi) within an overall pressure range of -0.95 bar to 0 bar, this 294 g blue component with a 60 +/-5 shore hardness delivers a holding force of 570 N using atmospheric air based on ISO 8573-1:2010 [7:-:-]. It features an upward connection position, a G3/8 vacuum connection for mounting, any mounting position, a moderate corrosion stress rating (CRC 2), VDMA24364-A1-L LABS conformity, and an ambient temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1396067
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1396067.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 25 mm
- Nominal width
- 7 mm
- Suction cup diameter
- 125 mm
- Suction cup volume
- 307 cm³
- Effective suction cup diameter
- 101.8 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 570 N
- Product weight
- 294 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G3/8
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Die-cast zinc
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1396067. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
