Festo
1396096

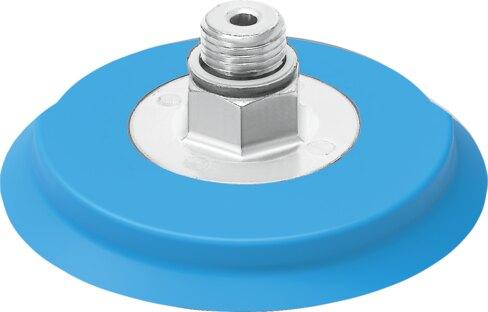

Vacuum suction cup VAS-75-1/4-PUR-B
The Festo 1396096 is a round, flat industrial component featuring a 75 mm suction cup diameter, an effective diameter of 67.4 mm, and a 3.5 mm height compensation with a suction cup volume of 18.3 cm³. Operating within a pressure range of -0.095 MPa to 0 MPa and a nominal pressure of -0.07 MPa utilizing atmospheric air, it delivers a holding force of 250 N and weighs 77 g with a G1/4 vacuum connection oriented upward. This component features a Shore hardness of 60 +/-5, a CRC rating of 2 for moderate corrosion stress, VDMA24364-A1-L LABS conformity, an ambient temperature range of -20 °C to 60 °C, and any mounting position utilizing the vacuum connection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1396096
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1396096.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 3.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 75 mm
- Suction cup volume
- 18.3 cm³
- Effective suction cup diameter
- 67.4 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 250 N
- Product weight
- 77 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Die-cast zinc
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1396096. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
