Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

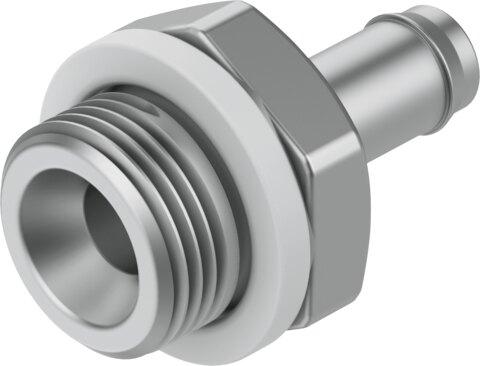

Reference imageConfirm configuration by manufacturer part number.
Festo
13970
Barb fitting CRCN-1/8-PK-4
The Festo part number 13970 is an industrial component featuring a nominal width of 3.2 mm, a G1/8 external thread for pneumatic connection 1, and a connection for a 6 mm outside diameter pneumatic tubing for pneumatic connection 2. Built with a high-alloy stainless steel housing, PA-reinforced and TPE-U(PU) threaded seal, and a sealing ring on the screwed plug, this component operates within a temperature range of 0 °C to 60 °C and an operating pressure of -0.95 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:-:-]. It offers a CRC of 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, RoHS compliance, a product weight of 7.86 g, and is supplied in a pack size of 10 with oil lubrication operation possible. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13970
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13970.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 3.2 mm
- Type of seal on screwed plug
- Sealing ring
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 7.86 g
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Material of threaded seal
- PA-reinforced | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13970. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
