Festo
13972

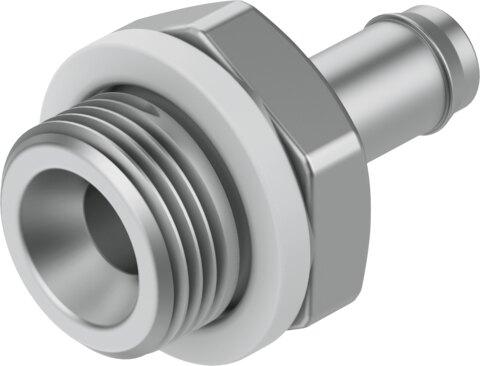

Barb fitting CRCN-1/4-PK-4
The Festo 13972 is a 17.73 g industrial component featuring a G1/4 external thread for pneumatic connection 1 and a connection for 6 mm outside diameter pneumatic tubing for pneumatic connection 2, with a nominal width of 3.2 mm. Built with a high-alloy stainless steel housing, a sealing ring type of seal on the screwed plug using PA-reinforced and TPE-U(PU) materials, and a CRC of 2 for moderate corrosion stress, this part operates at pressures from -0.95 bar to 10 bar across an ambient temperature range of 0 °C to 60 °C using compressed air per ISO 8573-1:2010 [7:-:-]. It conforms to VDMA24364-B2-L LABS standards, is RoHS compliant, allows oil lubrication for further use, and comes in a pack size of 1 with food industry usage detailed in supplementary materials. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 3.2 mm
- Type of seal on screwed plug
- Sealing ring
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 17.73 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Material of threaded seal
- PA-reinforced | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13972. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
