Festo
13997

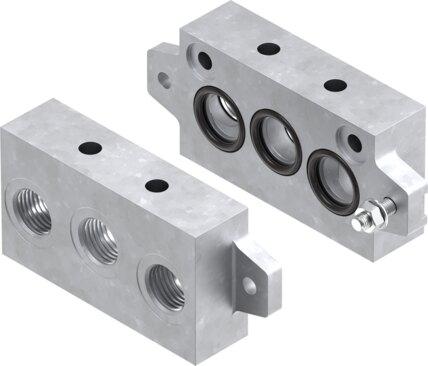

End plate kit NEV-3DA/DB-NPT
This Festo industrial component, part number 13997, measures 190 mm in width and features NPT1-11 1/2 pneumatic connections 1, 3, and 5. It operates within a pressure range of 0 bar to 16 bar using compressed air as per ISO 8573-1:2010 [7:-:-], with a medium and ambient temperature range of -10 °C to 60 °C. Operation with oil lubrication is possible and required for further use, meeting VDMA24364-B1/B2-L LABS (PWIS) conformity while utilizing through-hole sub-base mounting and screw-in pneumatic valve mounting. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13997
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13997.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 190 mm
- Operating pressure
- 0 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- Screw-in
- Pneumatic connection 1
- NPT1-11 1/2
- Pneumatic connection 3
- NPT1-11 1/2
- Pneumatic connection 5
- NPT1-11 1/2
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13997. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
