Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
13999

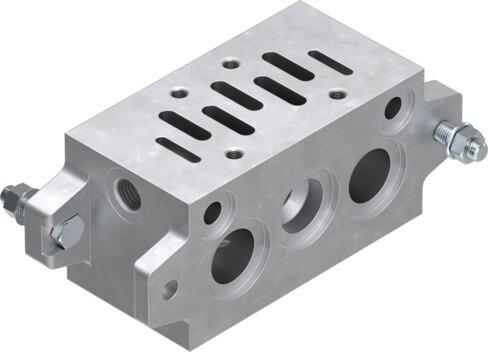

Manifold sub-base NAV-1/2-NPT-3C
The Festo part number 13999 is an industrial component featuring a width of 190 mm and sub-base mounting via a through-hole. Operating with compressed air as per ISO 8573-1:2010 [7:-:-] at a maximum operating pressure of 16 bar, this unit handles medium and ambient temperatures ranging from -10 °C to 60 °C with oil lubrication possible and required for further use. Pneumatic connections 2 and 4 utilize NPT1/2-14 ports, while pilot air ports 12 and 14 use NPT1/8-27 ports alongside VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13999
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13999.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 190 mm
- Operating pressure
- 16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pilot air port 12
- NPT1/8-27
- Pilot air port 14
- NPT1/8-27
- Pneumatic connection 2
- NPT1/2-14
- Pneumatic connection 4
- NPT1/2-14
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13999. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
