Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

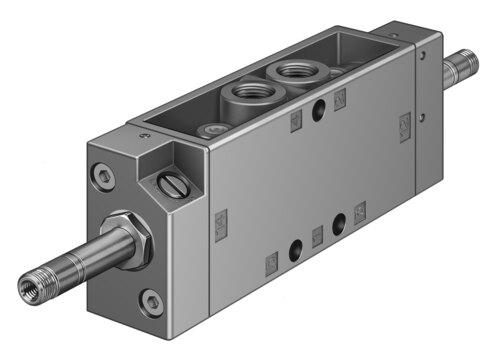

Reference imageConfirm configuration by manufacturer part number.
Festo
14008
Air solenoid valve JMFH-5-1/8-S
The Festo 14008 is a 5/2-way bistable pneumatic industrial component featuring a piloted plate seat design with soft sealing and a negative overlap lap. This 26 mm wide valve delivers a normal nominal flow rate of 600 l/min through G1/8 pneumatic working ports, operating at pressures from 0 bar to 10 bar (0 MPa to 1 MPa) with an external pilot air supply port. It includes an IP65 degree of protection, adjustable exhaust air function, detenting manual override, and c UL us recognition, while utilizing an operating voltage applied via a separately ordered solenoid coil in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14008
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14008.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 5 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...0.8 MPa
- Pilot pressure
- 1.2 bar...8 bar
- Max. switching frequency
- 25 Hz
- Changeover time
- 10 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14008. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
