Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

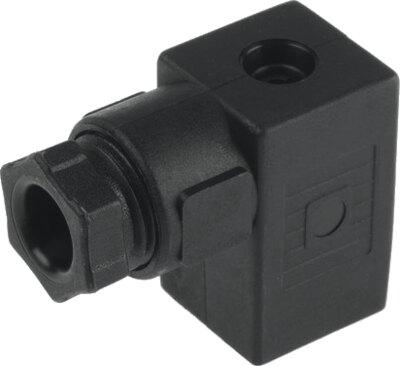

Reference imageConfirm configuration by manufacturer part number.
Festo
14098
Plug socket MSSD-E
The Festo 14098 is an industrial component designed for mounting on air solenoid valves via an M3 central screw in any mounting position. Weighing 8 g, this black part features a reinforced polyamide housing with NBR seals, an angled 3-pin rectangular form C electrical connection 1, and a screw terminal electrical connection 2 supporting a DC operating voltage range of 0 V to 300 V, an AC operating voltage range of 0 V to 250 V, and a current rating of 6 A at 40 °C. It provides IP65 protection, a Pg7 cable fitting for 6 mm to 8 mm cables, a connection cross section of 0.75 mm², an ambient temperature range of -25 °C to 90 °C, VDMA24364-B2-L LABS conformity, and contamination level 3. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14098
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14098.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- On air solenoid valve with M3 central screw
- Mounting position
- Any
- Product weight
- 8 g
- Electrical connection 1
- Angled socket, rectangular design, 3-pin, form C
- Electrical connection 2
- Screw terminal
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 6 A
- Cable tting
- Pg7
- Cable diameter
- 6 mm...8 mm
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP65
- Ambient temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Contamination level
- 3
- Housing material
- PA-reinforced
- Housing colour
- Black
- Seals material
- NBR
- Official Festo technical specifications
- Type of mounting On air solenoid valve with M3 central screw Mounting position Any Product weight 8 g Electrical connection 1 Angled socket, rectangular design, 3-pin, form C Electrical connection 2 Screw terminal DC operating voltage range 0 V...300 V Operating voltage range AC 0 V...250 V Current rating at 40° C 6 A Cable tting Pg7 Cable diameter 6 mm...8 mm Connection cross section 0.75 mm² Degree of protection IP65 Ambient temperature -25 °C...90 °C LABS (PWIS) conformity VDMA24364-B2-L Contamination level 3 Housing material PA-reinforced Housing colour Black Seals material NBR 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14098. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
