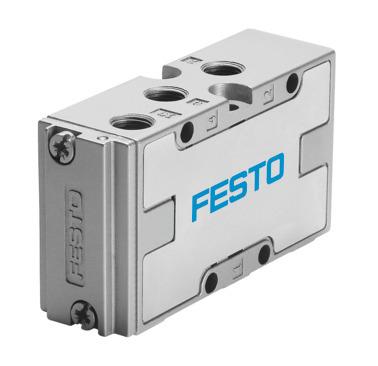

Reference imageConfirm configuration by manufacturer part number.
Festo
14294
Pneumatic valve VL-5-1/4-B
The Festo part number 14294 is a directly controlled 5/2-way monostable industrial component featuring a plate seat structural design with a soft sealing principle and negative overlap lap. This pneumatic unit operates within a pressure range of 0 bar to 10 bar (0 MPa to 1 MPa), utilizes an external pilot air supply port requiring 1.5 bar to 10 bar (0.15 MPa to 1 MPa), and delivers a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports with an adjustable exhaust air function. Featuring a 32 mm width, 33 mm width dimension, 7 mm nominal width, mechanical spring reset method, and non-reversible flow direction, it supports any mounting position without a manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14294
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14294.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Nominal width
- 7 mm
- Width dimension
- 33 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.15 MPa...1 MPa
- Pilot pressure
- 1.5 bar...10 bar
- b-value
- 0.29
- C value
- 5.5 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 12 ms
- On switching time
- 2 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Official Festo technical specifications
- Valve function 5/2-way, monostable Actuation type Pneumatic Width 32 mm Normal nominal ow rate (normalized to DIN 1343) 1300 l/min Pneumatic working port G1/4 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Structural design Plate seat Reset method Mechanical spring Nominal width 7 mm Width dimension 33 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override None Type of control directly Pilot air supply port External Flow direction Non-reversible Lap Negative overlap Pilot pressure MPa 0.15 MPa...1 MPa Pilot pressure 1.5 bar...10 bar b-value 0.29 C value 5.5 l/sbar Max. switching frequency 3 Hz Switching time off 12 ms On switching time 2 ms Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -40 °C...60 °C Temperature of medium -10 °C...60 °C 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14294. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
