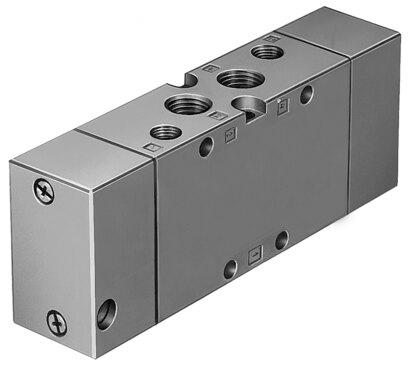

Reference imageConfirm configuration by manufacturer part number.
Festo
14299
Pneumatic valve VL-5/3B-1/4-B
The Festo 14299 is a 32 mm wide pneumatic industrial component featuring a 5/3-way pressurized valve function with a piston gate valve structural design and soft sealing principle. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and utilizing external pilot air supply with a pilot pressure of 3 bar to 10 bar, this unit delivers a normal nominal flow rate of 1600 l/min through G1/4 pneumatic working ports. It incorporates a mechanical spring reset method, adjustable exhaust air function, reversible flow direction, and direct control with a positive overlap lap in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14299
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14299.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Pneumatic
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 10 mm
- Width dimension
- 33 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- b-value
- 0.38
- C value
- 6.35 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 26 ms
- On switching time
- 6 ms
- Changeover time
- 35 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Official Festo technical specifications
- Valve function 5/3-way, pressurized Actuation type Pneumatic Width 32 mm Normal nominal ow rate (normalized to DIN 1343) 1600 l/min Pneumatic working port G1/4 Operating pressure -0.09 MPa...1 MPa -0.9 bar...10 bar Structural design Piston gate valve Reset method Mechanical spring Nominal width 10 mm Width dimension 33 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override None Type of control directly Pilot air supply port External Flow direction Reversible Lap Positive overlap Pilot pressure MPa 0.3 MPa...1 MPa Pilot pressure 3 bar...10 bar b-value 0.38 C value 6.35 l/sbar Max. switching frequency 3 Hz Switching time off 26 ms On switching time 6 ms Changeover time 35 ms Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -40 °C...60 °C 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14299. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
