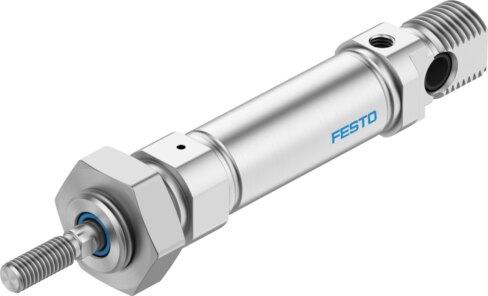

Reference imageConfirm configuration by manufacturer part number.
Festo
14316
ISO cylinder ESNU-16- -P-A
The Festo part number 14316 is a single-acting industrial component featuring a 16 mm piston diameter, an M6 external piston rod thread, and an adjustable stroke ranging from 1 mm to 50 mm. Built with elastic cushioning rings at both ends, this piston-rod cylinder operates on compressed air between 0.12 MPa and 1 MPa (1.2 bar to 10 bar) and conforms to CETOP RP 52 P and ISO 6432 standards. It achieves a theoretical advancing force of 106.5 N at 6 bar with a moving mass of 23 g at 0 mm stroke, supports position sensing via proximity switch, and offers moderate corrosion resistance (CRC 2) across an ambient temperature range of -20 °C to 80 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14316
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14316.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...50 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M6
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.12 MPa...1 MPa | 1.2 bar...10 bar
- Mode of operation
- Pushing | Single-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.15 J
- Theoretical force at 6 bar, advancing
- 106.5 N
- Moving mass at 0 mm stroke
- 23 g
- Additional moving mass per 10 mm stroke
- 2 g
- Basic weight with 0 mm stroke
- 89.9 g
- Additional weight per 10 mm stroke
- 4.6 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy | Colorless anodized
- Official Festo technical specifications
- Stroke 1 mm...50 mm Piston diameter 16 mm Piston rod thread M6 Cushioning Elastic cushioning rings/pads at both ends Mounting position Any Conforms to standard CETOP RP 52 P ISO 6432 Piston rod end External thread Structural design Piston Piston rod Cylinder barrel Position sensing Via proximity switch Variants Piston rod at one end Operating pressure 0.12 MPa...1 MPa 1.2 bar...10 bar Mode of operation Pushing Single-acting Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -20 °C...80 °C Impact energy in the end positions 0.15 J Theoretical force at 6 bar, advancing 106.5 N Moving mass at 0 mm stroke 23 g Additional moving mass per 10 mm stroke 2 g Basic weight with 0 mm stroke 89.9 g Additional weight per 10 mm stroke 4.6 g Type of mounting With accessories Pneumatic connection M5 Note on materials RoHS compliant Cover material Wrought aluminum alloy Colorless anodized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14316. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
