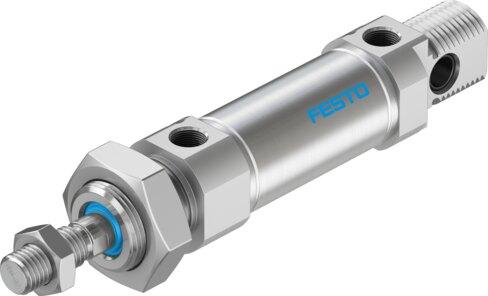

Reference imageConfirm configuration by manufacturer part number.
Festo
14322
ISO cylinder DSNU-25- -PPV-A
The Festo 14322 is a double-acting industrial component featuring a 25 mm piston diameter, an adjustable pneumatic cushioning system at both ends, and an operating pressure range of 1 bar to 10 bar. Conforming to ISO 6432 and CETOP RP 52 P standards, this unit supports a stroke length from 1 mm to 500 mm, an M10x1.25 piston rod thread, and position sensing via a proximity switch across any mounting position. It operates within an ambient temperature range of -20 °C to 80 °C using compressed air per ISO 8573-1:2010 [7:4:4] and possesses a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14322
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14322.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...500 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.3 J
- Cushioning length
- 17 mm
- Theoretical force at 6 bar, retracting
- 247.4 N
- Theoretical force at 6 bar, advancing
- 294.5 N
- Moving mass at 0 mm stroke
- 71 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 238 g
- Additional weight per 10 mm stroke
- 11 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Official Festo technical specifications
- Stroke 1 mm...500 mm Piston diameter 25 mm Piston rod thread M10x1.25 Cushioning Pneumatic cushioning, adjustable at both ends Mounting position Any Conforms to standard CETOP RP 52 P ISO 6432 Piston rod end External thread Structural design Piston Piston rod Cylinder barrel Position sensing Via proximity switch Variants Piston rod at one end Operating pressure 0.1 MPa...1 MPa 1 bar...10 bar Mode of operation Double-acting Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 6 according to ISO 14644-1 Ambient temperature -20 °C...80 °C Impact energy in the end positions 0.3 J Cushioning length 17 mm Theoretical force at 6 bar, retracting 247.4 N Theoretical force at 6 bar, advancing 294.5 N Moving mass at 0 mm stroke 71 g Additional moving mass per 10 mm stroke 6 g Basic weight with 0 mm stroke 238 g Additional weight per 10 mm stroke 11 g Type of mounting With accessories Pneumatic connection G1/8 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14322. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
