Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1435249

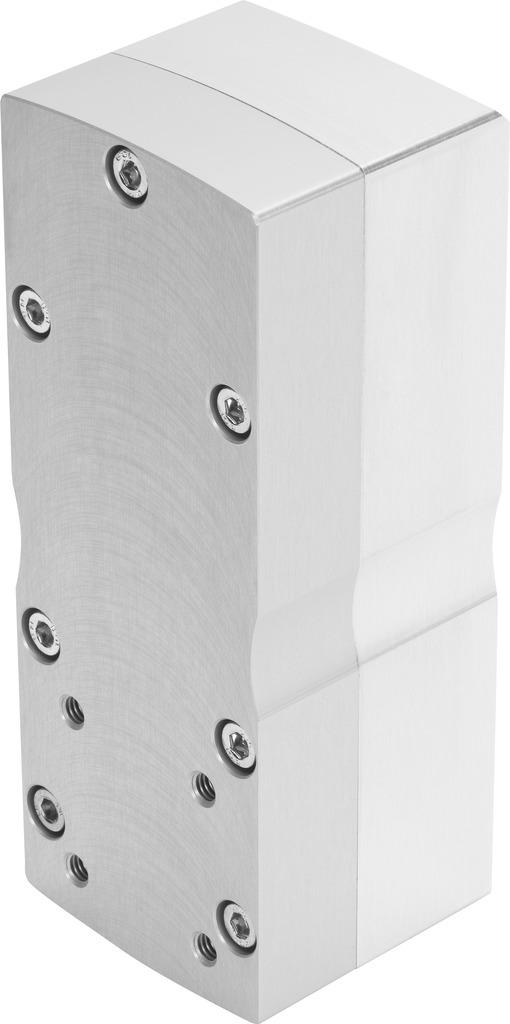

Parallel kit EAMM-U-60-D40-67A-91-S1
Engineered by Festo, this industrial component features a size 60 frame with an exact 1:1 gear ratio and a maximum rotational speed of 6000 1/min. The unit offers a transferable torque of 3 Nm, a no-load driving torque of 0.07 Nm, and a mass moment of inertia of 26.7 kgmm². Built with IP65 protection and VDMA24364 zone III LABS conformity, it operates within an ambient temperature range of -10 °C to 60 °C and accommodates actuator interface code D40B alongside motor input interface code 67A. Please submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1435249
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1435249.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1190 g
- Interface code, actuator
- D40B
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
- Official Festo technical specifications
- Size 60 Mounting position Any Gear ratio 1:1 Max. rotational speed 6000 1/min LABS (PWIS) conformity VDMA24364 zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95 % Degree of protection IP65 Ambient temperature -10 °C...60 °C Mass moment of inertia 26.7 kgmm² No-load driving torque 0.07 Nm Transferable torque 3 Nm Product weight 1190 g Interface code, actuator D40B Interface code, motor in 67A Note on materials RoHS-compliant Feb 2, 2024 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1435249. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
